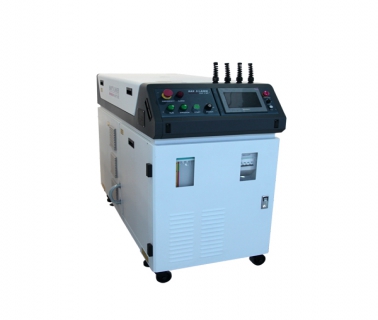

YAG Laser Welding Machine PB300CE

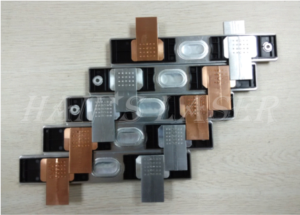

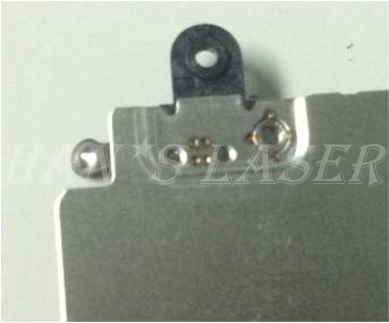

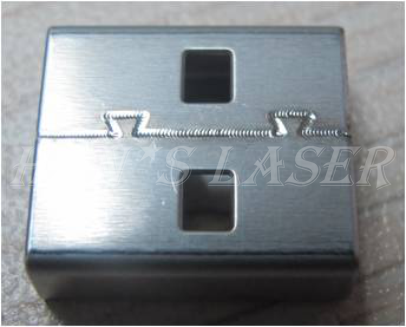

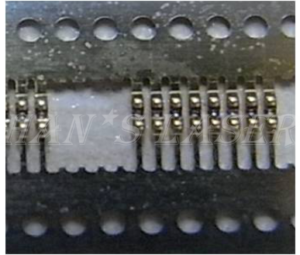

Features： High depth-to-width ratio; Small width of welding seam High welding speed; Small welding spot High-precision position; Small heat-affected zone Small thermal distortion Application： The laser welder can weld the same materials like titanium, nickel, tin, copper, aluminum, chromium, niobium, gold, silver, steel and their alloys. And it also can weld two different materials, like copper-nickel, nickel-titanium, titanium-molybdenum.

เเชร์

ราคา

PB300CE laser welder is composed by YAG laser generator, fiber transmission system, PFCS laser power real-time feed-back control system, HPP700ACE laser power supply, cooling system and etc.
YAG laser generator adopts import ceramic reflection cavity, the maximum average laser power output is 300W, and the peak laser power is 6KW.
Fiber transmission system is configured 1 path in standard and 4 paths in optional, the length of fiber is 5m, and there is optional choice to be configured CCD welding monitor system in each path.
The PFCS laser power real-time feed-back control system ensures the stability of energy output in long running. Furthermore the laser pulse wave can be edited freely to satisfy different welding requirements. There is 50 sets waves data can be set, and each set contains 16 data parts, which need to set time and laser power percentage.
The HPP700ACE laser power supply adopts IGBT power switch with the functions in protections of over flow, over loading, pulse width, temperature and other circuits.

Specifications

Machine model	PB300CE
Laser wave length	1064nm
Max. laser output power	300W
Max. laser pulse power	30J
Quantity of fiber transmission path	Max. 4 paths, support 4 different worktable with different time and energy
Pulse width	≤50ms
Laser frequency	≤200Hz
Fiber diameter	400um or 600 um
Power rating	16.5KW
Electrical requirement	40A Three phase 380V±5%/50Hz/air-break/40A
Control system	PFCS laser power real-time feed-back control system
Closed-loop feed-back control system	Laser power feed-back
Cooling method	Water cooling
Preview position	Red light indication (CCD, monitor in optional)
Dimension	1480mm×610mm×1100mm
