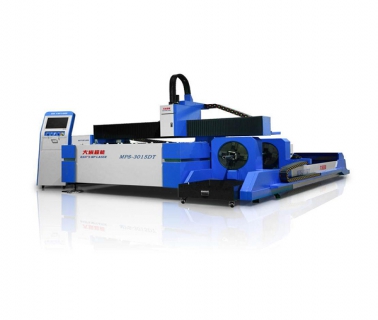

1500W fiber cutting machine MPS-3015 DT

Note: Cutting carbon steel(for example, continuous processing 1mm-thickness carbon steel): About 0.5 bottle of oxygen consumption per hour, The price of one bottle of oxygen (pressure 15.5Mpa, 99.5% purity)is about 200 INR, auxiliary gas consumption per hour: 100INR/hour. Cutting stainless steel（for example, continuous processing 1mm stainless steel sheet ）：Medium tank of liquid nitrogen is 125kg, 3200 INR/tank, can provide N2 for 12 hours, 3200INR/12 hour=267INR/hour. Protection lens: 1800INR per piece, work time of 800 hours, consumption per hour: 1800/800 = 2.25 INR/hour. Cutting nozzle: 1200INR per piece, work time of 800 hours, consumption per hour: 1200/800 = 1.5 INR/hour

เเชร์

ราคา

Specifications

Process size & cutting scope		Parameter
Cutting area（L×W）		3000mm×1500mm
X stroke		3050mm
Y stroke		1550mm
Z stroke		100mm
U stroke		Infinite loop
Pipe cutting size		Round pipe(φ20-φ200mm) ,Square pipe（□20-□140mm）
Max. Length of pipe		≤3000mm
Accuracy	X、Y positioning accuracy	±0.05mm/m
Accuracy	X、Y repetition positioning accuracy	±0.03mm
Speed	X/Y Max. Positioning speed	45m/min
Speed	X、Y Max. acceleration speed	0.4G
Power supply	phase	3
	Rating voltage	380V
	Frequency	50Hz
	IP degree	IP54
Weight & dimension	Max. load of worktable	500kg
	Weight of machine	5.5T
	Dimension（L×W×H）	5000mm4000mm1900mm

Laser Cutting Equipment Consumption

Item	Name	Electricity consumption	Total power	Factor	Total electricity consumption	Expense (Yuan)
Power consumption	Laser generator	7	20	20*60％=12	12KW/h	10.*10 INR/KW=105INR/h
	Machine tool	8
	chiller	5
Air compressor consumption	Air compressor	11	13.5	13.5*50％=6.75	6.75KW/h	6.75*10 INR /KW=67 INR/h
	Air dryer	2.5
Laser generator gas consumption	None

Cutting Auxiliary Gas & consumption material cost

No.	Item	Cutting carbon steel sheet (1mm)	Cutting stainless steel sheet or aluminum alloy sheet (1mm)
Bottled oxygen	Liquid nitrogen
1	Cutting auxiliary gas consumption	100 INR/h	267INR/h
2	Protection lens consumption	2.25/h
3	Cutting nozzle consumption	1.50/h
4	Total	103.75 INR/h	270.75 INR/h

Material

Material	Thickness(mm)	Cutting speed	Auxiliary gas
Stainless steel	1	240	Nitrogen
	2	140-160
	3	65-75
	4	38-22
	5	18-22
	6	13-16
	8	5-8
Carbon steel	1	240	Oxygen
	2	100-120
	3	55-65
	4	50-60
	5	40-45
	6	28-32
	8	23-25
	10	17-19
	12	12-15
Aluminum	1	320-400	Nitrogen
	2	80-100
	3	30-40

Note:The speed list is just for reference, the speed of pipe cutting is 20% less compared to pipe cutting
